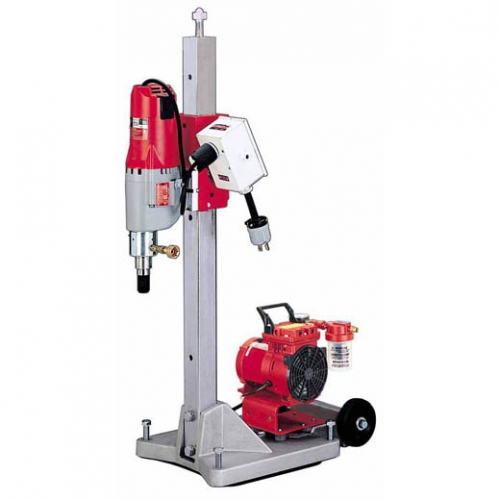

This contractor series small base stand features a cast aluminum base with 4 leveling screws for fast accurate leveling adjustment.
The durable precision-ground 2-1/2 in. steel column is 43-1/2 in. high and has a universal motor adapter plate.
The reversible feed handle helps the operator use the unit from either side.
The Vac-U-Rig uses a vacuum to apply suction to a large pad mounted on the bottom of the rig.
This aids in stability when coring holes.
Weight-115.3#
Amps-20
Spindle-1-1/4"-7
Max HP-4.8
Motor Protection-Clutch
Plug Type-L5-20P
Suggested Dia in Med Aggregate-6"-10" / 2"-6"
Angle Drilling-No
Meter Box-Yes
Vac Base-Yes
Wheels-Yes
Height-43-1/2"
